Compressor Station Expansion – Pipe Rack Modules

Project Location:

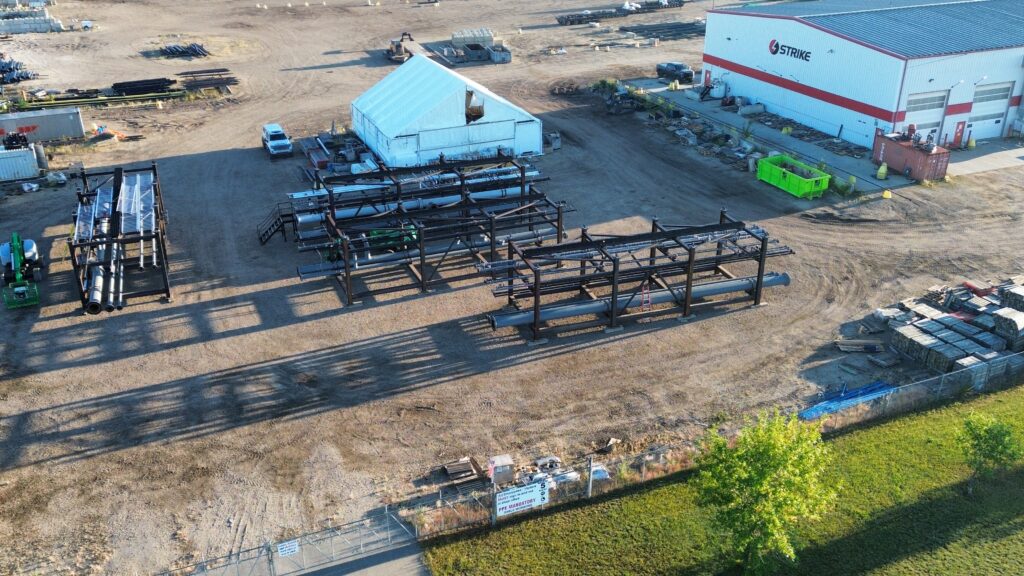

  • Fabricated at Strike’s Grande Prairie Yard

Strike Divisions:

  • Field Services
  • Electrical & Instrumentation

Project Overview:

Strike successfully completed the fabrication and assembly of four pipe rack modules for a Compressor Station Expansion. The project involved structural steel fabrication, piping installation, electrical and heat trace systems, testing, and module preparation for shipment. Through strong collaboration across multiple disciplines, the project was delivered on schedule while meeting all quality and client requirements.

Scope

  • Material receiving and management

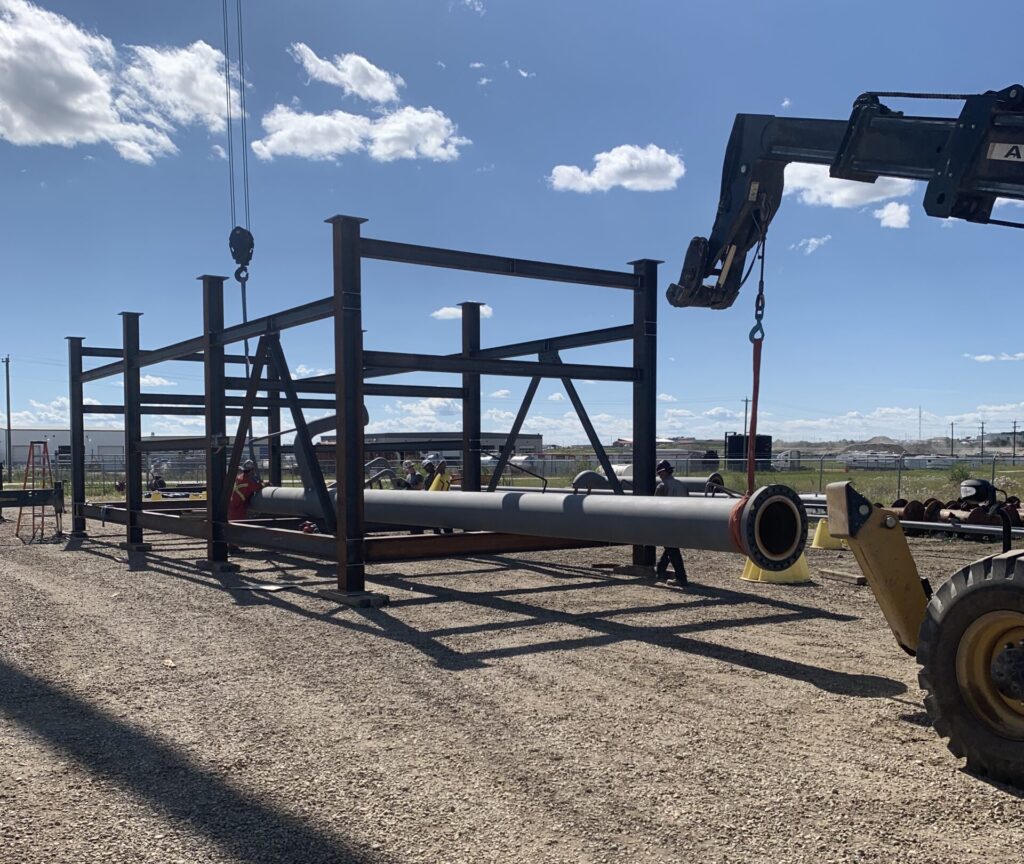

  • Structural steel fabrication and assembly of pipe rack modules
  • Fabrication and installation of pipe supports, guides, shoes, and anchors
  • Fabrication, fit-up, and installation of above-ground piping systems
  • Installation of valves, fittings, specialty items, and inline components
  • Electrical cable tray installation and support systems
  • Electrical heat trace installation, terminations, and testing
  • Non-destructive examination (NDE)
  • Hydrostatic testing
  • Painting and insulation installation
  • Mechanical completion and punch list execution
  • Module preservation and Ready-to-Ship (RTS) preparation
  • Turnover package

Project Metrics

  • 4 Pipe Rack Modules Completed
  • 45,972.5 kg of Structural Steel Fabricated and Installed
  • 3,492 FDI of Piping Fabricated and Installed, including NDE, Post Weld Heat Treatment
  • 944 LM of Piping Installed, including Hydrotesting
  • 611 LM of Painted pipe, including internal and external coating

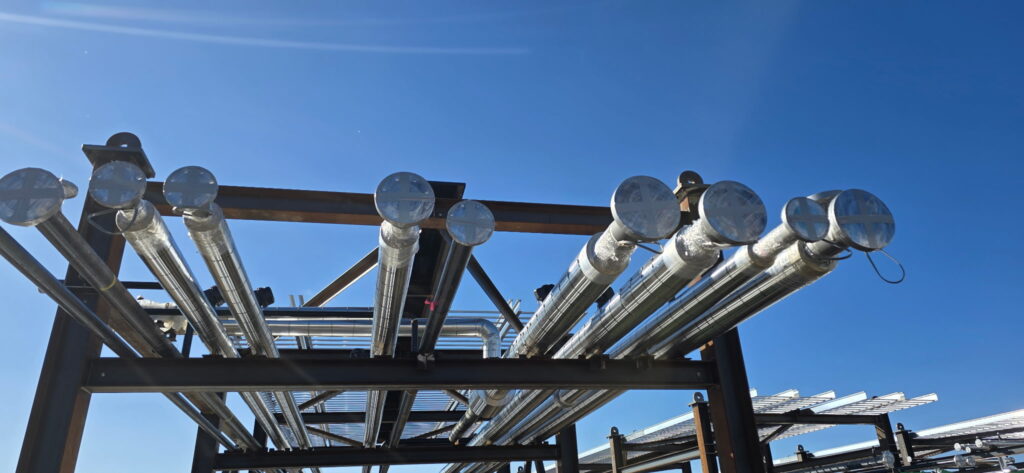

  • 611 LM of Insulated Piping
  • 214 Pipe Shoes Fabricated and Installed
  • 672 LM of Heat Trace
  • Electrical included:
    • 40 Heavy Duty SLA86094 Cable Tray, 6m Length
    • 12 Expansion Connectors
    • 16 Flexible braid bonding jumper
    • Meggaring and testing all electrical components, including testing heat trace
